$19,731.66
Bovie Orders May Be Subject to a Minimum Order Fee of $50.00 for orders less than 8 pieces purchased from the below-selected items.
“Specialty Items will incur a $25.00 surcharge, due to Bovie’s criteria.”
Shipping charges are billed separately.

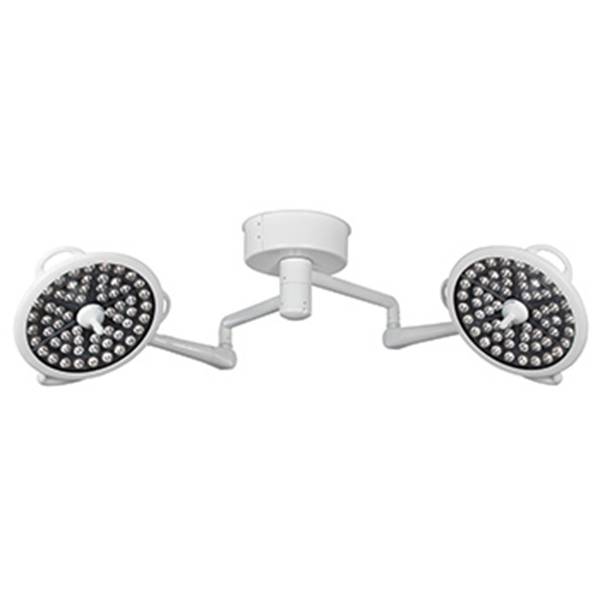

TWO 130K lux Lights
The System Two LED series presents an unmatched value to surgery center, specialty practices and outpatient care facilities seeking a surgical lighting system. The energy efficient design consumes half the electricity of its halogen counterpart to offer significant long-term savings for the healthcare facility. The long-life 50,000 hour rated LED’s eliminate procedure room downtime and are output rated at 130,000 Lux with a Kelvin color temperature of 4300°. The System Two LED series is designed with the unique spring arm system which can be adjusted for the life of the product providing optimal surgical site visibility and positioning. This lighting system is available in solo, duo and tri mounting styles; with or with camera and monitors.
GREEN TECHNOLOGY
The energy efficient System Two LED consumes half the electricity of its halogen counterpart.
INCREASED EFFICIENCY
Long-life 50,000 hour rated LED’s alleviate the need to purchase and store replacement bulbs and eliminates procedure room down-time due to unexpected bulb burn-outs.
EXCELLENCE
Output rated at 130,000 Lux with a Kelvin color temperature of 4300°, superior shadow reduction and designed with the unmatched MI arm system for optimal surgical site visibility and positioning.
PROCEDEURAL COMFORT
Using System Two LED cool technology improves patient and staff comfort by reducing the heat produced by old-fashioned Halogen lights.
COST SAVING
The System Two LED saves the medical facility thousands when compared to standard OR lights currently available.
Optical Specifications:
Correlated Color Temperature: 4,200° Kelvin ±300°K
Irradiance: 128 W/m2 (1 m)
Color Rendering Index (CRI R1-R8=RA): 95
Color Rendering Index R9: 95
Focal Length: 39.4” (1 Meter)
Central Illuminance (Full Intensity): 130,000 +/- 5K Lux.
Dimming – 5 Intensity Levels (Indicated by 5 LED’s on 2 indicator strips Located 180° apart): 100%=130,000, 87.5%=113,750, 75%=97,500, 62.5%=81,250, 50%=65,000
Endo Mode (12 LED’s triangulated 120° apart): 8,500 Lux
Light Field Diameter (Adjustable): 9.5”–14” (229mm–356mm)
Depth of Illumination: 32.3” (820mm)
Diameter (d50): 5.5” (127mm–140mm)
Illuminance (One Mask): 74,560 Lux (6,930 fc)
Illuminance (Two Masks): 62,408 Lux (5,800 fc)
Illuminance at Bottom of Standard Tube: 132,300 Lux (12,300 fc)
Illuminance at Bottom of Standard Tube, One Mask: 72,630 Lux (6,750 fc)
Illuminance at Bottom of Standard Tube, Two Masks: 60,256 Lux (5,600 fc)
Electrical Specifications:
Input Voltage: 100-240 VAC 50/60 Hz – Single Phase
LED Life: 50,000 Hours (Average)
Solo Power: 120 Watts
Duo Power: 240 Watts
Trio Power: 360 Watts
Environmental Specifications:
Ambient/Operating Temperature: 41°F to 104°F (5° to 40° Celsius)
Storage Temperature Range: -4°F to 122°F (-20° to 50° Celsius)
Humidity: 10%-90% Relative Humidity
Pressure: 100 kPA (@<2K Meters)
Mechanical Specifications:
Weights:
Solo Ceiling Mount Assembly*: Approximately 73.5 lbs (33.3 Kg)
Duo Ceiling Mount Assembly*: Approximately 104.5 lbs (47.4 Kg)
Trio Ceiling Mount Assembly*: Approximately 155.5 lbs (70.5 Kg)
Light Head Assembly: Approximately 28.1 lbs (12.7 Kg)
(*Note: The weight of the Ceiling Cast assembly is included)
Dimensions:
Ceiling Casting: 17.0” (431.8 mm) Dia. x 4.7” (119.4 mm) Deep
Ceiling Rod: 2.5” (63.5 mm) Dia. x 9.0”-43.0”(228.6 -1092.2 mm) Long (depending on ceiling height)
Arm (Articulated): 4.0” (102 mm) Dia. (tapered) x 26.0” (660 mm) Long
Light Head Assembly: 25.5” (648 mm) Dia. 4.75” (120 mm) Deep
Rotations:
Ceiling Mount/Extension Arm Interface: Continuous
Articulating/Extension Arm Interface: Continuous
Articulating Arm Vertical Movement: +15 Degrees, -65 Degrees
Articulating Arm/Yoke Interface: Continuous
Yoke/Lamp Head Interface: +/-165 Degrees (330° Range)
