XLDE-WM MI 550 Wall Mount 100V – 240V (061322)

Bovie Medical XLDE-WM MI 550 Wall Mount 100V – 240V (061322)

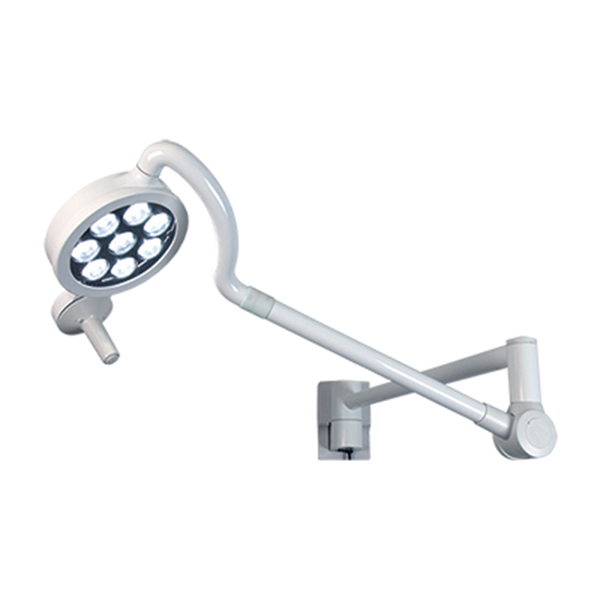

MI 550 Wall Mount 100V – 240V

The compact but powerful MI-550 is the perfect fit and offers the greatest value in an examination light. It provides maximum brightness, sharpness and color accuracy, so you can visualize your work in the most precise way. And the 55,000 hour-rated LED life means this light will faithfully serve your practice for many long years, while consuming the least amount of energy.

• Output rated at 55,000 LUX at 24″ (610mm) distance
• 4,300° K pure white illumination
• CRI (Color Rendering Index) of 97
• Whiter, more color-correct light than halogen exam lights
• Near-zero heat from both light beam and light head housing
• High efficiency with half the electric consumption of standard halogen lights
• Compact head design with smooth arm articulation
• Lower overall maintenance costs due to long-lasting LEDs

INNOVATIVE

The MI 550 light is part of the “cutting-edge” MI LED SERIES.

EFFICIENT

The MI 550’s LED life averages 50,000 hours. It uses significantly less electric consumption than standard halogen lights.

COOL

The MI 550’s light beam and head emit very low heat and are part of our LED solution.

BRIGHT

The MI 550 light is output rated at 50,000 lux (4,600 foot candles) at a distance of 24”. It is whiter, a more color-correct light.

SURGICAL STYLE IN A COMPACT VERSION

Its 9.2” diameter head design is small but powerful and has great arm articulation.

HANDLE CONTROL

Adjust brightness and position with one hand.

VERSATILE

Comes with a variety of mounting options, wall mount, portable, single and dual ceiling mounts.

Optical Specifications:

Number of LEDs: 8
Output: 55,000 Lux @ 24″ (0.6m)
CCT: 4,300°K
CRI: 97
Focal Length: 24″ (0.6m)
Dimming Levels: 2
Dimming Percentages: 100%, 50%
Endo Mode: No
Light Field (d10): ≈Ø6.0″ (Ø152mm)
Light Field (d50): ≈Ø3.5″ (Ø 89mm)
Irradiance: 71 W/m²

Electrical Specifications:

Supply Circuit: 100- 240 VAC, 50/60Hz
Fuse Rating: 1.5 Amp/250VAC
Power Supply power handling capacity: 65W
Light Head power consumption: 16W @ 24VDC

Environmental Specifications:

Ambient/Operating temperature: 41°F to 104°F (5°C to 40°C)
Storage Temperature: -4°F to 122°F (-20°C to 50°C)
Humidity: 10 – 90% Relative Humidity
Pressure: 100kPA (@<2k meters)

Mechanical Specifications:

Light Head Weight: 6.9 lbs (3.1 kg)
Light Head Dimensions: Ø9.2″ (234mm) 2.6″ (66mm)
Arm Assembly Weight: Single = 48.3 lbs (22.0 kg),
Arm Assembly Weight: Dual = 77.1 lbs (35.0 kg)
Articulating Arm Vertical Movement: +20° Up, -60° Down
Articulating Arm Horizontal Movement: ≈540°
Articulating Arm/Yoke Interface: ≈540°
Yoke/Light Head Interface: ≈300°

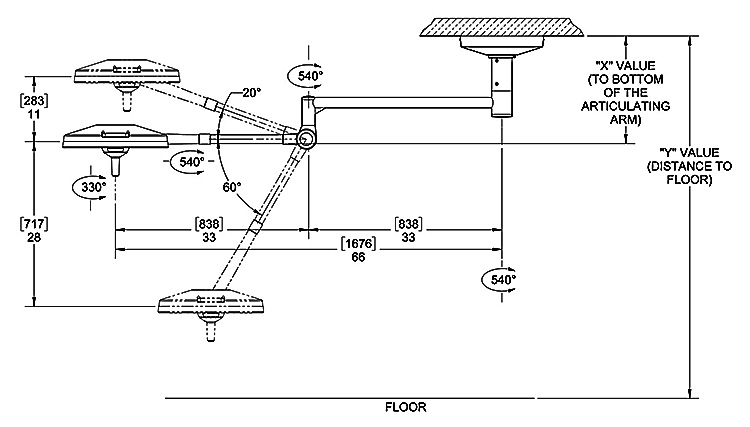

Rotation and Movement:

MI 550 Wall Mount 100V – 240V
