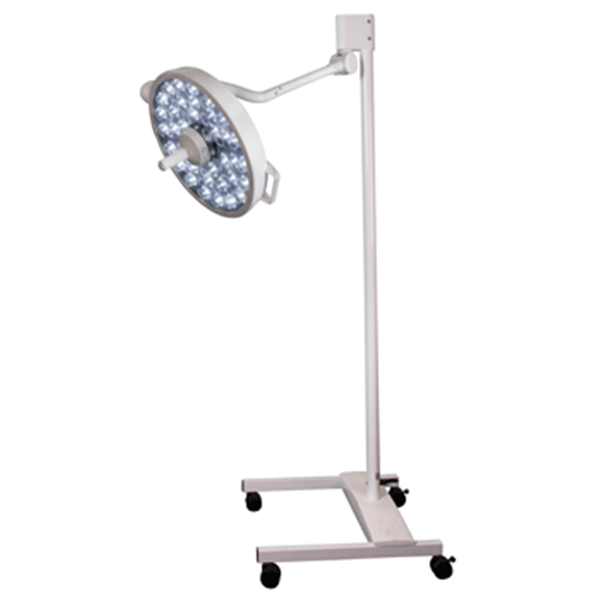

XLD-FM MI 1000 Portable Floor Model 100V – 240V
The MI 1000 LED light is the first in the cutting-edge MI LED Series offered by Bovie. The light emits very low heat with an output rating of 100,000 lux (10,000 foot candles) at 4,300 degrees Kelvin color temperature. Engineered with “Green” technology, the MI 1000 uses significantly less electricity than standard halogen lights. The long-life LED’s are rated at 50,000 hours virtually eliminating the need for inconvenient bulb changes. Five intensity outputs are available and are controlled using the five-stage dimming and on/off switch located on the sterilizable handle. The MI 1000 LED is available in a variety of mounting styles and all lighting equipment (excluding parts) is backed by a three (3) year limited warranty.
COMPELLING
The MI 1000 light is part of the “cutting-edge” MI LED SERIES.
PROCEDURAL COMFORT
Using cool LED technology improves the comfort of the patient, practitioner, and medical staff.
BRIGHT
The MI 1000 light is output rated at 100,000 lux (9,300 foot candles) at 4,300 degrees Kelvin color temperature.
EFFICIENT “GREEN TECHNOLOGY”…
The MI 1000 light uses significantly less electric consumption than standard halogen lights.
RELIABILITY
Lighting equipment (excluding replacement parts) has a three (3) yr. limited warranty. Long-life LED’s, rated up to 50,000 hrs.*
CONVENIENT
No replacement bulbs or fuses necessary… lower overall maintenance costs.
INNOVATIVE
Five-stage dimming and on/off switch controlled from sterilizable handle.
VERSATILE
Available in a variety of mounting options.
Optical Specifications:
Number of LEDs: 36
Output: 100,000 Lux @ 39.4″ (1m)
CCT: 4,300°K
CRI: 97
Focal Length: 39.4″ (1m)
Dimming Levels: 5
Dimming Percentages: 100%, 87%, 75%, 62%, 50%
Endo Mode: Yes
Light Field (d10): ≈Ø8.3″ (Ø209mm)
Light Field (d50): ≈Ø4.9″ (Ø124mm)
Depth of Illumination: ≈24″ (610mm)
Illuminance (one mask): 27.2%
Illuminance (two masks): 37.2%
Illuminance (tube with one mask): 24.3%
Illuminance (tube with two masks): 40.3%
Irradiance: 295 W/m²
Electrical Specifications:
Supply Circuit: 100- 240 VAC, 50/60Hz
Fuse Rating: 2.5 Amp/250VAC
Power Supply power handling capacity: 100W
Light Head power consumption: 54W@24VDC
Environmental Specifications:
Ambient/Operating temperature: 41°F to 104°F (5°C to 40°C)
Storage Temperature: -4°F to 122°F (-20°C to 50°C)
Humidity: 10 – 90% Relative Humidity
Pressure: 100kPA (@<2k meters)
Mechanical Specifications:
Light Head Weight: 14.6 lbs (6.6 kg)
Light Head Dimensions: Ø18″ (Ø457mm) 4″ H (102mm)
Arm Assembly Weight: Single = 48.3 lbs (21.9 kg)
Arm Assembly Weight: Dual = 77.1 lbs (35.0 kg)
Articulating Arm Vertical Movement: +20° Up, -60° Down
Articulating Arm Horizontal Movement: ≈540°
Articulating Arm/Yoke Interface: ≈540°
Yoke/Light Head Interface: ≈300°
XLD-FM MI 1000 Portable Floor Model 100V – 240V
