Seca 216 Mechanical Measuring Rod / Stadiometer (2161814009)

Seca 216 Mechanical Measuring Rod / Stadiometer (2161814009)

Seca 216 Mechanical Measuring Rod / Stadiometer

• Two different measurement ranges.
• Easy read-out.
• Adjustable head positioner.
• Choice of two units of measurement.
• Simple assembly.

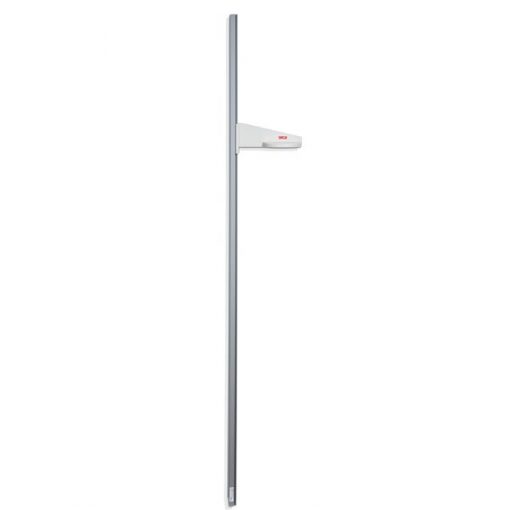

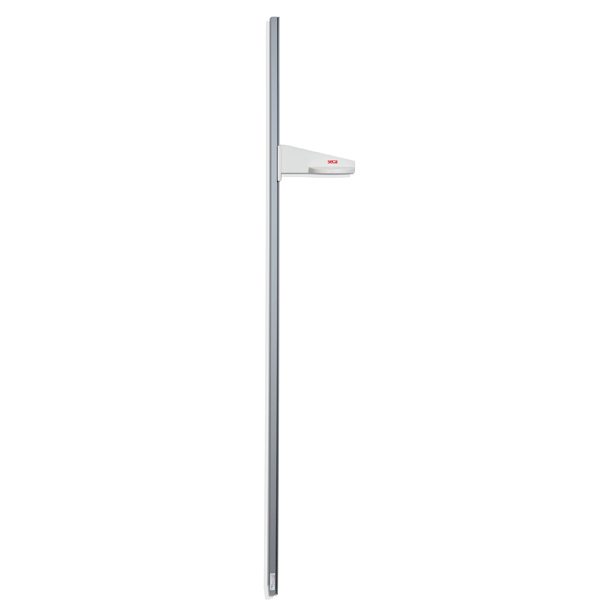

The Seca 216 mechanical stadiometer has a variable scale with a range of 1.4 to 90 inch that is inserted into a 55.3 inch frame. The plastic frame is simply mounted on the wall at the desired height. As the user can choose the range shown in the frame, the Seca 216 is suitable for measuring children or adults. The results are clearly displayed in a window on the side of the rod and held in place by the locking screw on the head piece. Suitable for international use, the scale is printed in centimeters on one side of the tape and centimeters and inches on the other.

Two different measurement ranges.

It doesn’t matter if your patient is tall or short, the Seca 216 is suitable for measuring both children and adults. The measuring rod has a removable scale from 3.5 to 230 centimeters. The user simply inserts the range he wants to use in the 138-centimeter plastic sleeve.

Easy read-out.

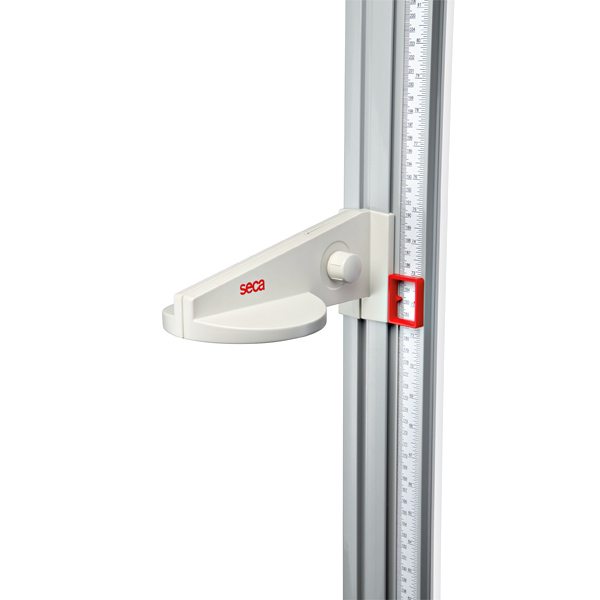

Even while the measurement is being taken, the result can be read out on the scale, which runs along the side of the measuring rod. A large display window helps to make sure the user can take an accurate reading. The result remains constant after measuring has been completed. The head positioner, which can be easily locked into place, stays in exactly the right position when the measured person steps away from the measuring rod.

International use.

The Seca 216 is also flexible when it comes to the unit of measurement. The double-sided printed scale leaves the choice to the user, with results displayed in centimeters or in centimeters and inches.

Simple Assembly.

The Seca 216 mechanical stadiometer can be mounted on the wall at any height. The scale itself serves as an assembly guide. When the starting point (zero) is placed on the floor and the scale is attached tightly to the measuring rod, the desired assembly height is easy to find. And the measurements are guaranteed to be accurate to a millimeter. The graduation index can be fixed in place with the locking screw.

• Measuring range: max. 55.3 inch (1.4-90 inch) / max. 138 cm (3.5-230 cm)
• Graduation Length: 1/16 inch / 1 mm
• Weight: 3.7 lbs / 1.7 kg
• Dimensions: 4.7 x 59.1 x 8.5 inch / 120 x 1,500 x 217 mm
• Functions: Wall fastening essential/possible
• Directive: MP
