Three piece top imaging table with drop
Please allow at least 14 days lead time. Freight charges will be bill separately.

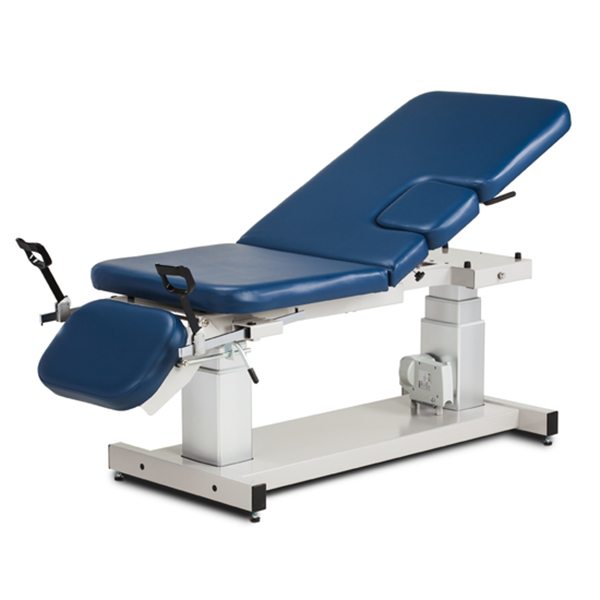

CLINTON Multi Use Imaging Table
PLEASE CALL OR EMAIL WITH YOUR DESIRED PRODUCT INFORMATION!
MODEL #: 80079
• Three-section table with pneumatic adjustable backrest, manual footrest, stirrups and window drop
• Footrest is adjustable from either side and raises up to 30º from flat position
• Optional side rails & casters (see opt
• Trendelenburg/Reverse Trendelenburg plus or minus 15 º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• 2 Safety straps included
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• 34″ wide model available
• 550 lbs load capacity under normal use
| MODEL # | LENGTH | WIDTH | HEIGHT RANGE |
|---|---|---|---|
| 80079 (overall) | 76″ | 27″ | 21.5″ – 37.5″ |
| Backrest | 38″ | 27″ | |
| Footrest | 12″ | 18.5″ | |
| Window | 10″ | 10″ | |
| 80079-X (overall) | 76″ | 34″ | 21.5″ – 37.5″ |
| Backrest | 38″ | 34″ | |
| Footrest | 12″ | 18.5 | |
| window | 10″ | 10″ | |
| 80079-X (overall) | 193 cm | 86.36 cm | 54.61 cm – 95.25 cm |
| Backrest | 96.52 cm | 86.36 cm | |
| Footrest | 30.28 cm | 47 cm | |
| Window | 25.4 cm | 25.4 cm |
• Smooth power control raises backrest to 80º and lowers to flat
• Padded and length adjustable
• Extends the table’s length
• Padded, ratchet style, rotating armboard
• Rotates 180º
• Interchangeable on right or left side
• 2″ x 89.5″ (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2″ x 120″ (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
• Chrome pole with height adjustment
• Removable bracket mounts to either side of the head end
• 2-hook top
• 3″ heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6″ to the overall width of the table. (15.24 cm)
• Smooth power control lowers footrest to 30º and raises to flat
• Pair
• 3-height, position
• Plunger height adjustment
| Dimensions | 76 × 27 × 215-37.5 in |
|---|
